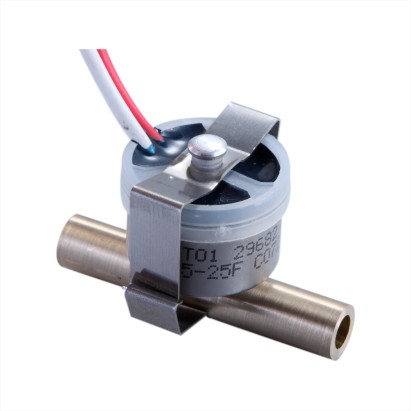

Temperature automatic control for removing frost and for protecting the frozen rupture in the cold storage or freezing systems
*with temperature protect thermal cut off
*Easy to install at the small or narrow space
*slim shape -Small size with high contacting capacitance
*Available waterproof and dustproof types with welding vinyl tube on the parts
Specificates Rated Current AC 250V/5A, 250V/10A
Temperature Range -20℃ ro 150℃
Action Temperature CLOSE:－5℃ OPEN:12℃
Life Cycle 100,000 cycle Min.
Dielectric Strength:Withstand AC 1.8kV for 1 second
Insulation Resistance 100 MΩ Min.
Internal Resistance 100 MΩ Max.
Certifications:CQC CE VDE UL CSA
* Dimension see drawing details
* Remarks : Any requirement on the terminals, caps, brackets or contacts are acceptable
|
