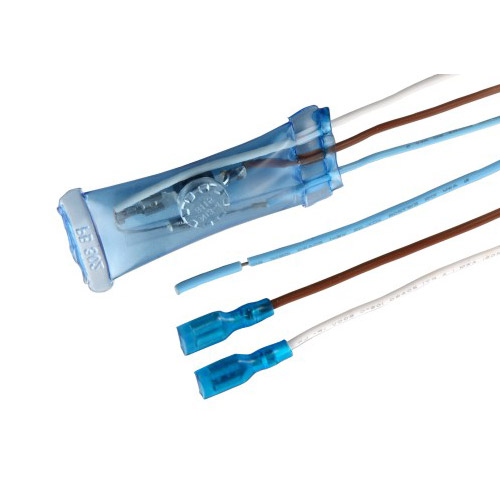

Name : KSD-5011 B1 Heavy-duty sealed thermostat


Online service:


  ZOOM

Introduction Download：KSD-5011 B1.pdf

The KSD5011 B1 Defrosting thermostats  Automatic Reset SPST  In this configuration, the switch can be built to either open or close its electrical contacts on temperature rise. Once thetemperature in the application has returned to the specified reset temperature, the contacts will automatically return to their original state.Typical uses of this construction include limiting and regulating temperatures in air conditioners,heat pumps and fan coil units

Main technical specification:
*Action characteristic: Single cutter,single throw (SPST),
*Electric rating : 250VAC@16A/250VAC@25A
*Insulation resistance : ≥100MΩ
*Action temperature range : -30℃～90℃
*Lead wire and temperature can be decided to Users requirements.
*Controls are 100% operation checked and dielectric tested.
